Fiber optic cables are designed to protect delicate optical fibers while providing reliable communication over long distances. During installation, maintenance, and repair, however, technicians often need to access the fibers inside the cable. Simply cutting through the outer jacket with a conventional knife can be risky because the optical fibers, buffer tubes, and strength members underneath must remain protected.
A professional fiber slitter provides a more controlled way to open fiber optic cable jackets and buffer tubes. These specialized tools are designed to create longitudinal or radial cuts while helping technicians reach the internal fibers without unnecessary damage. For telecommunications, FTTH, data center, and other fiber installation work, choosing the appropriate fiber optic cable slitter can make cable preparation faster, safer, and more consistent.
What Is a Fiber Slitter?
A fiber slitter is a specialized hand tool used to open the outer jacket, buffer tube, or protective layer of a fiber optic cable. Depending on the tool design, it may perform a longitudinal slit along the cable or a radial, also called ringing, cut around the cable.
The purpose is not simply to cut the cable. Instead, the tool allows technicians to create controlled access to the internal components while reducing the risk of damaging the optical fibers.

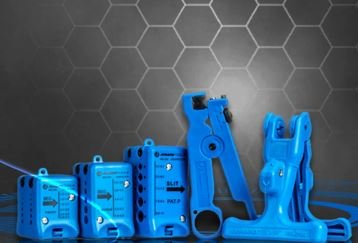

Jonard Tools manufactures a wide range of fiber slitting and ringing tools for technicians working in the fiber optics industry. Its product range includes more than 40 fiber slitters and ring tools designed for different cable sizes and applications.
Why Are Fiber Optic Cable Slitters Important?
Fiber optic cables can contain multiple layers, including outer jackets, loose tubes, strength members, and optical fibers. These components require careful handling when a technician needs to expose a specific section of the cable.
Using an ordinary utility knife may provide less control over blade depth and cutting direction. A purpose built fiber slitter tool is designed with features that help guide the blade and control the cutting process.
Professional fiber slitting tools can help technicians:
- Create controlled openings in cable jackets
- Access optical fibers at mid-span locations
- Prepare cables for splicing and termination
- Open loose buffer tubes
- Reduce the risk of accidental fiber damage
- Improve consistency during repetitive cable preparation
- Work more efficiently in field environments
The right tool is particularly valuable when a technician needs to access fibers without cutting the entire cable.
What Is Mid Span Slitting?
Mid span slitting is the process of opening a section of a fiber optic cable jacket without cutting the cable completely through. This technique is useful when technicians need to access internal fibers at a specific point along the cable.
A mid span fiber slitter typically uses a guided blade or precision groove to create a controlled longitudinal opening. After the jacket is opened, technicians can access the required fibers while leaving the remaining cable structure intact.
Jonard Tools MS-6 Mid Span Slitter, for example, is designed for 1.2 mm to 3.3 mm cable diameters and provides six precision grooves for different cable sizes. Its design is intended to open fiber jackets or loose buffer tubes while protecting the fiber inside.
Mid-span access can be useful during network expansion, repairs, branching, and other fiber maintenance activities.
Slitting vs. Ringing
Understanding the difference between slitting and ringing is important when selecting a fiber optic cable slitter.
Slitting
Slitting creates a longitudinal cut along the length of the cable or buffer tube. This allows the technician to open the jacket and access components running inside.
Ringing
Ringing creates a circumferential cut around the cable. This can allow a section of the outer jacket to be removed after the jacket has been opened longitudinally.
Some fiber tools combine both functions in a single design. This can be particularly useful for technicians who regularly perform different cable preparation tasks.
For example, Jonard’s JIC-4366 Cable Slit & Ring Tool is designed to slit and ring various tight buffers, loose tube buffers, breakout cables, and other jacketed fiber cables. Its hardened steel guide and blade guard help guide the tool while protecting buffer tubes and fiber inside the cable.
Types of Fiber Slitter Tools
Different fiber cables require different slitting solutions. Choosing a tool based on cable construction and diameter can make a significant difference in performance.
Mid Span Slitters
Mid span slitters are designed to create access windows in fiber optic cables without completely cutting through the cable. They are useful when technicians need access to internal fibers at a point between cable ends.
Many mid span slitters use multiple grooves or size settings to accommodate different cable diameters.
Fiber Jacket Slit and Ring Tools
These tools combine longitudinal slitting and radial ringing functions. They can be useful for working with jackets, loose tubes, and breakout cables.
Jonard’s JIC-4377 Fiber Jacket Slit & Ring Tool is designed for various buffer tubes, breakout cables, and jacketed cables, including OFS Minicord EZ-Bend and similar cable types. Its shorter L-shaped steel guide is intended to make slitting these smaller or specialized cables easier.
Drop Cable Slitters
FTTH installations frequently use flat fiber drop cables. These cables have a different construction from many traditional round fiber cables, so a specialized fiber slitter tool may be appropriate.
The FOD-2000 Fiber Optic Drop Cable Slitter is designed for flat drop cables and can slit both sides of the jacket simultaneously to provide access to the fiber or strength members.
Compact Slit and Ring Tools
Field technicians sometimes have to work in cabinets, enclosures, or other confined locations. Compact tools can be advantageous in these situations.
Jonard’s CSR-125 and CSR-250 compact cable slit and ring tools use spring loaded handles and adjustable blade depth. The CSR-125 is designed for cables up to 3.3 mm, while the CSR-250 accommodates cables from 3.3 mm to 6.4 mm.
Choosing the Right Fiber Optic Cable Slitter
The best fiber optic cable slitter depends on the cable and the type of work being performed.
1. Check Cable Diameter
Cable diameter is one of the first specifications to consider. A tool designed for a small buffer tube may not be appropriate for a larger OSP cable.
For example, Jonard’s MS series includes tools covering several cable diameter ranges, allowing technicians to select a model appropriate for the cable being serviced.
2. Identify Cable Construction
Determine whether the cable has a tight buffer, loose tube, flat drop design, thick outer jacket, or another construction. Different designs require different cutting approaches.
3. Determine the Required Cut
If you only need a longitudinal opening, a dedicated slitter may be sufficient. If you need both longitudinal and circumferential cuts, a slit and ring tool may provide greater flexibility.
4. Consider Blade Depth
Controlled blade depth is important because the objective is to remove or open the outer layer without unnecessarily penetrating deeper components.
Some tools allow blade depth to be adjusted according to cable size and construction.
5. Consider the Working Environment
Technicians working in tight spaces may benefit from compact tools, while larger outside plant cables may require tools with longer guides, larger grooves, or additional leverage.
Best Practices for Using a Fiber Slitter
Before using a fiber slitter, identify the cable type and confirm that the tool is designed for its diameter and construction.
Select the appropriate groove or size setting where applicable. Position the cable securely in the tool and follow the manufacturer’s recommended pulling or cutting direction.
Do not force the tool if resistance feels unusual. Excessive pressure can make the cut less controlled and may increase the possibility of damaging internal components.
For mid span slitters, the cutting direction and blade location are important. Jonard’s instructions for its MS series indicate selecting the correct groove, placing the cable in that groove, engaging the tool, and pulling in the indicated direction for slitting. The ring function is performed by rotating the tool around the cable.
After opening the jacket, inspect the exposed components before continuing with splicing, termination, or other work.
Fiber Slitters for FTTH and Telecommunications
Fiber slitting tools are particularly useful in FTTH and telecommunications applications because technicians frequently need to access cables at different points throughout a network.
In an FTTH deployment, a technician may work with drop cables, distribution cables, riser cables, and other cable constructions. Having specialized slitters for these different applications can reduce the need to improvise during installation.
For larger telecommunications cables, mid-span tools can provide controlled access to the internal fibers while maintaining the rest of the cable structure.
Maintaining Your Fiber Slitter Tool
Like any precision hand tool, a fiber slitter should be maintained properly. Keep the tool clean and inspect the blade regularly for signs of wear or damage.
Replacement blades can be particularly useful for tools designed for repeated professional use. Jonard offers replacement blades for several of its slitting and ringing tools, allowing technicians to maintain the cutting performance of compatible products.
Store the tool in a clean, dry location when it is not being used. Avoid exposing precision blades to unnecessary moisture, dirt, or impact.
Conclusion
A professional fiber slitter is an important tool for technicians who need controlled access to the inside of fiber optic cables. Whether the task involves mid span access, jacket removal, buffer tube preparation, or FTTH drop cable installation, the right fiber optic cable slitter can make cable preparation more efficient and precise.
Because fiber cables differ in diameter, construction, and application, there is no single slitting tool that is ideal for every situation. Technicians should consider cable size, jacket type, required cut, blade depth, and working environment before selecting a fiber slitter tool.
With purpose built equipment and proper handling techniques, technicians can open fiber cables efficiently while helping protect the delicate components inside. A well selected slitting tool therefore becomes more than just another item in a fiber toolkit, it is an essential part of professional fiber optic cable preparation and maintenance.
